Drywall Angle Roll forming Machine
■ Drywall Partitioning System- Drywall Angle, L Angle or Drywall Edge Bead
The drywall partitioning system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.
In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.

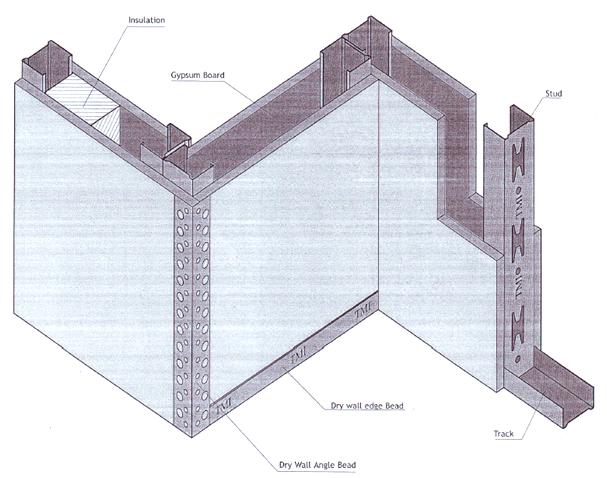

The drywall partition beam system are consisted of stud, track, drywall angle bead and drywall edge bead, etc.

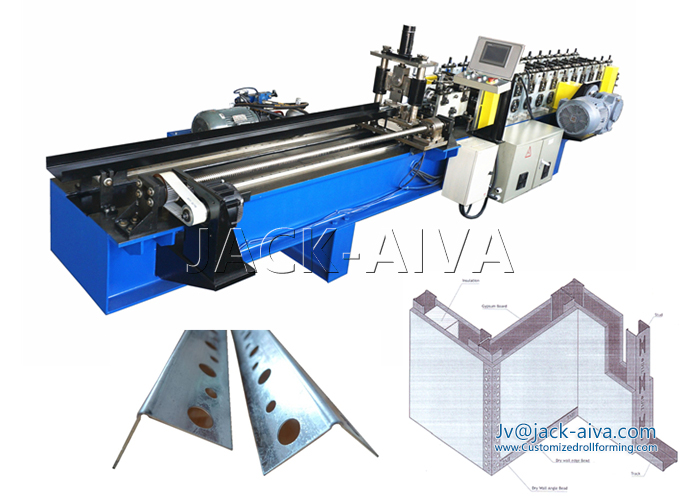

■ Brief Introduction- Drywall Angle Roll Forming Line with holes punching online
Our Drywall partition beam roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The Drywall stud Roll Forming Machine is consisted of de-coiler, hydraulic punching device, main roll forming machine, servo control hydraulic tracing cutter and run out table (flexible style discharge table). The line speed is designed according to 20m/min. The driving system is by reducer and main gearing box.

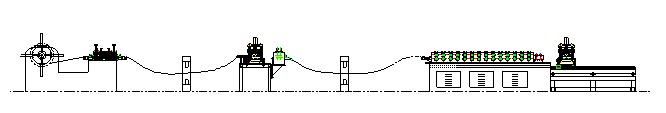

■ Roll Forming Line technology flow
Manual De-coiling (3 tons)+leveler (2 in 1)--- Servo motor control Feeder + Hydraulic punching with hole punching moulds--- Main Roll forming Machine ----  run out table (flexible style discharge table IS Optional)


■ Main Parameters- Drywall Angle Roll Forming Machine
Line structure
Portal-type frame style,  A3 steel
Raw material thickness
Raw material width
According to profile sizes
Forming Roller Stations:
12 Stations
Forming Roller shaft:
Forming rollers
SKII, Quenching, hardness HRC62-64º
Forming Speed:
12 meters / min
Main motor:
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Cutting mode:
Hydraulic tracing cutter, driving by servo motor
Line speed
20m/min (adjustable)
Control Cabinet
3xAC380v, 50HZ

■ Drywall Partition Sections- Steel Angle
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames ( stud wall construction ) and also roof trusses. There are many kinds of profiles of the dry wall partition beam & stud partition as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.

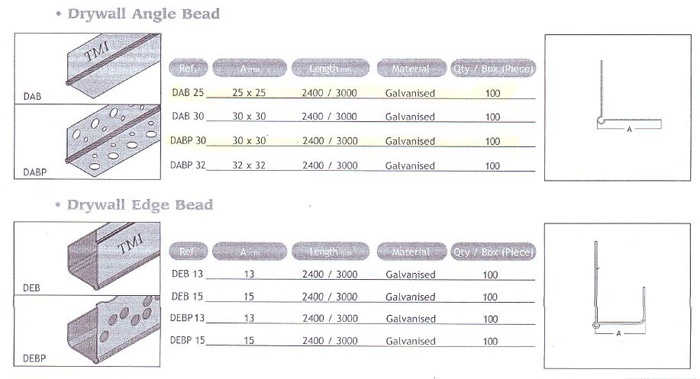

The following are the typical drywall steel angel sizes list for your reference.


■ Roll forming machine for manufacturing the production profiles for Ceiling & dry Wall system

TAG: Drywall Angle Roll forming Line, Drywall Partition Beam
