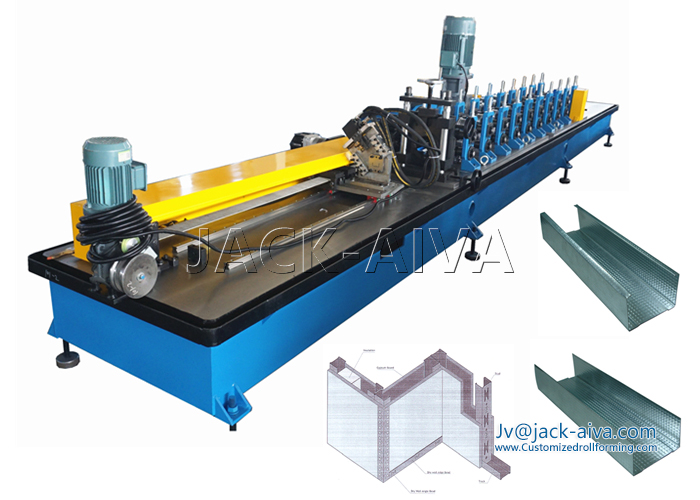

Partition Beam Roll forming Machine
■ Drywall Studs & Tracks (Partition beam) brief introduction

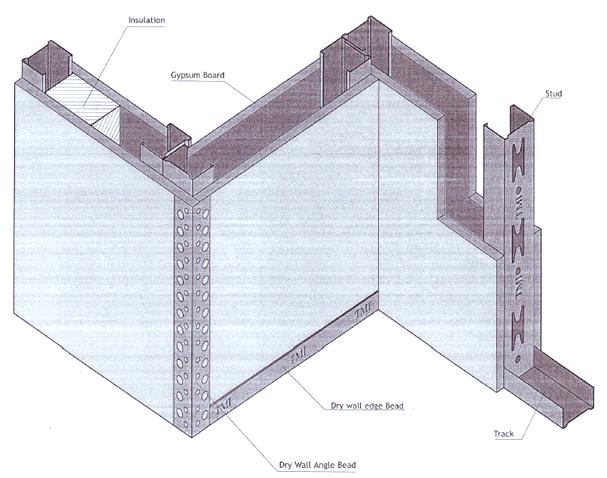

Metal Stud and Track showed as following are widely used in the light gauge steel building industry. The design gives a fire proof and easily erected system for partitioning and various other uses. The component parts of the system are ideal for Dry wall partition and ceiling suspension in commercial and residential application
■ Partition beam system (studs and tracks) cold roll forming machines
Our Dry wall partition beam roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel.
Partition beam roll forming machine is designed for manufacturing high quality studs and tracks in various sizes with our patent technology.
■ Dry Wall Partition Beam Roll Forming Machine Components
Dry Wall Partition Beam Roll Forming Machine consist of It is consist of de-coiler, main forming machine, straightening part, cut-to length part, run-out table, electrical control system, etc.
■ Suds & Tracks Roll Forming Machine
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
12 Stations
|
|
Forming Roller shaft:
|
Φ40mm
|
|
Forming rollers
|
GCr15, Quenching, hardness HRC56-62º
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
5.5kw
|
|
Capacity Width:
|
200mm
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.4 to 0.7 mm
|
|
Cutting mode:
|
Hydraulic automatic punching and cutting machine
|
|
Control Cabinet
|
3xAC380v, 50HZ
|
■ Drywall Partition and Ceiling Sections
■ Roll forming machine for manufacturing the production profiles for Ceiling & dry Wall system
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames ( stud wall construction ) and also roof trusses. There are many kinds of profiles of the dry wall partition beam & stud partition as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.
Drywall framing machine. drywall stud track roll-former machine, Partition beam roll forming machine, stud partition machine, stud maker,
Ceiling & dry Wall profile roll forming machine
