Stainless steel embossing machine

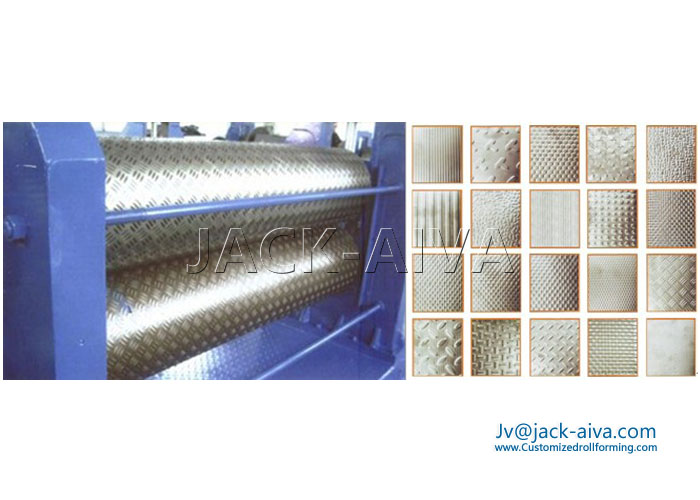

We are specialized in manufacturing embossing roller, graining roll, gold blocking plate, light extinction roll, mirror roll, brand plate and forming mould with dermatoglyph pattern, reticulate pattern and wood-grain. The product is used in construction industry and embossing decorative material industry.

 Double surface stainless steel Embossing machine technology specification

ITEM

CONTENT

Roll Formed Profile Type:

Embossed sheets pattern according clients’ request

Embossing roller diameter

About 300mm

Efficient width:

1250 mm (optional)

maximum thickness:

0.4mm-1.2 mm

Sheet Material

galvanized mild steel, stainless steel

Motor power:

5.5Kw, 3x380V

Diameter of rolling

cycloid reducer and chain

Speed of embossing

6m/min

Main machine Size:

1820×1220×1400)mm

Weight:

3500kg.

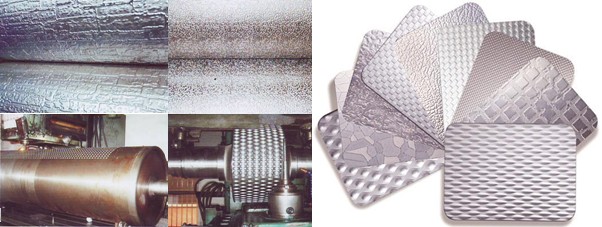

 Stainless Steel Embossing Sheet Application


Embossing is a metal forming manufacturing process by means of male and female harden metal rollers (dies) to form raise or sunken patterns on sheet of metal. The stainless steel slipping-proof pattern board is mainly applied in various machineries, lifts, stairs, construction and decoration industry, the industries of windows, doors, furniture, offices, buildings, automobiles, cold roll formed steel bar, ventilation duct sheets and more.

Further information, pls contact with us freely!
