Slotted Galvanized Steel C Channel Machine

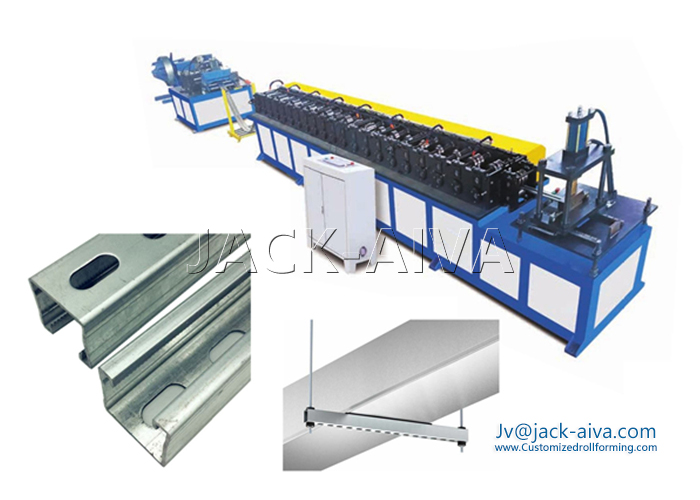

■ Brief Introduction- Slotted Galvanized Steel Unistrut C Channel 2.0-2.5mm
We can customized design the channel production lines for a wide range of suspension and fastening materials for the planner, contractor or duct fitter. From channel sections/struts via various duct hangers through to pipe clamps and beam clamps you will find everything you need for the quick and easy suspension or attachment of ventilation ducts. channel sections allow for the correct and simple suspension of rectangular ventilation ducts and other pipeline systems.
A great advantage when using struts for suspension of ductwork is the fact that no additional screws or rivets affect the air duct. No additional sealing measures are necessary and the air tightness of the ducts remains unaffected.

■ Technology specification - Slotted Galvanized Steel Unistrut C Channel Machine
With roll forming advantages, solar energy Steel Frame roll forming profile sections have a much wider scope of cross section if compared with press braked sections and without length limitation, and the efficiency is high.
The line speed is designed according to 0-6m/min. The driving system is by chain. The whole line is consisted of de-coiler, servo control hydraulic holes punching device, main roll forming machine, hydraulic cutter and run out table.

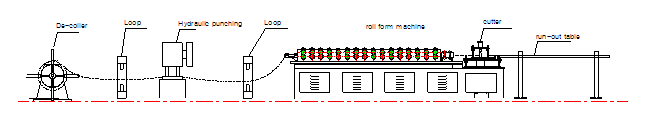

The roll forming line technology is as following,




■ Main parameter - Steel Unistrut C Channel Machine
Line structure
Portal-type frame style,  A3 steel
Forming Roller Stations:
22 Stations + 3 station cassette
Forming Roller shaft:
Φ58mm
Forming rollers
Cr12Mov, Quenching, hardness HRC60-62º
Forming Speed:
0 -6 meters / min
Main motor:
22kw,
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:
2.0-2.5mm
Cutter Device
Hydraulic press or saw style is optional

■ Application - C mounting profile for ductwork Mounting and hanging components

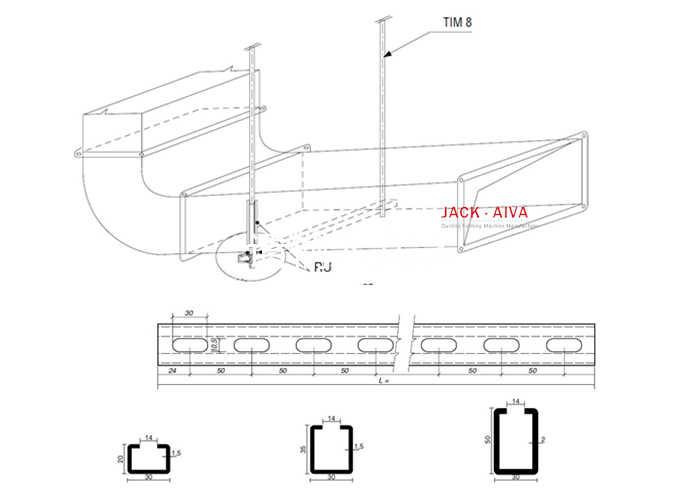

Metal Framing Channel range is the original framing strut bracket and has been used in countless applications for over 90 years. It is more commonly known as a 12 Gauge Standard or Deep Slotted Channel, C Channel 41*21mm & 41*41mm., slotted or without holes. Slots are sized for an inch threaded rod or fastener. Material thickness is 2.5mm and the internal slot width is 22mm
Plain or slotted channels are available, dependant on requirement, Ideal for installation of wiring, plumbing and mechanical components.
- Seismic bracing
- Ceiling grids
- Pipe
- Duct and cable tray supports
- Trapeze supports
- General framing applications
This particular channel is most suitable for use by electrical and mechanical contractors for pipework or ducting
TAG: Steel Unistrut C Metal Slotted Strut Channel Machine, metal frame, strut channel slotted, side to side strut channel
