Duct Hanging Slotted C Channel Making Machine

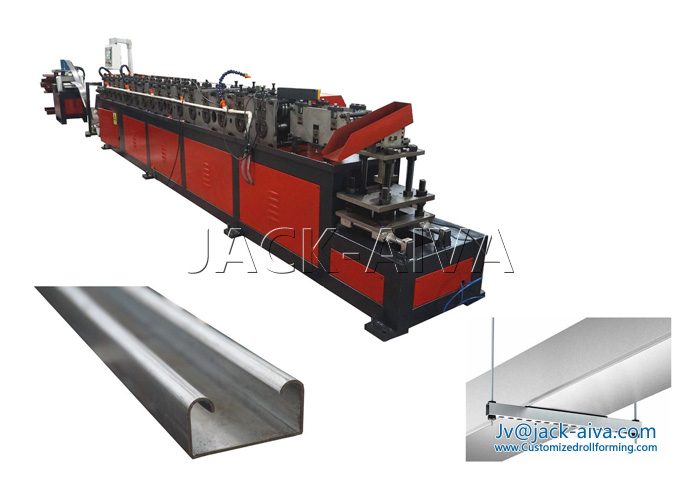

■ Roll Forming Machine for steel Unistrut C Metal Slotted Strut Channel
We can customized design the channel production lines for a wide range of suspension and fastening materials for the planner, contractor or duct fitter. From channel sections/struts via various duct hangers through to pipe clamps and beam clamps you will find everything you need for the quick and easy suspension or attachment of ventilation ducts. channel sections allow for the correct and simple suspension of rectangular ventilation ducts and other pipeline systems.

The roll formed C profile with holes punching on provides Ductwork mounting system proper solutions. A great advantage when using struts for suspension of ductwork is the fact that no additional screws or rivets affect the air duct. No additional sealing measures are necessary and the air tightness of the ducts remains unaffected.



■ Duct Hanging Slotted C Channel Making Machine Components

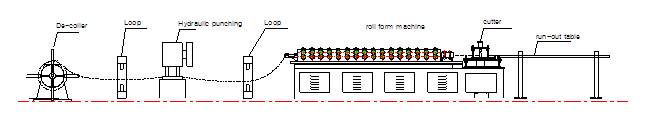

The C channel line is consisted of de-coiler, servo control hydraulic holes punching device, main roll forming machine, hydraulic cutter and run out table. The roll forming line technology is as following,


■ Main parameter - Steel Unistrut C Metal Slotted Strut Channel Machine
Line structure

Portal-type frame style,  A3 steel

Forming Roller Stations:

18 Stations

Forming Roller shaft:

Φ42mm

Forming rollers

Cr12Mov, Quenching, hardness HRC60-62º

Forming Speed:

0 -10 meters / min

Main motor:

7.5kw,

Material of Sheet:

Soft Quality (Annealed) Galvanized Sheet

Sheet Thickness:

1.2mm-1.8mm

Cutter Device

Hydraulic press or saw style is optional


■ Duct Hanging Slotted C Channel Application - Thickness 1.2-1.8mm

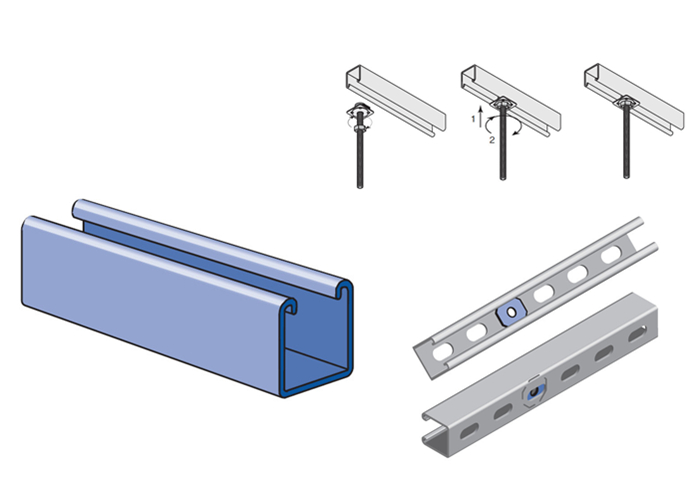

Metal Framing Channel can be used for framing and mounting and for constructing load centers and vertical pipe supports. With a silver-galvanized finish and a half-slot construction, the channel can also be used to create a trapeze for conduit and mechanical piping and to support duct and cable trays. The following are the standard profile drawing for reference.


■ Duct Hanging Slotted C Channel
The roll formed C profile with holes punching on provides Ductwork mounting system proper solutions. A great advantage when using struts for suspension of ductwork is the fact that no additional screws or rivets affect the air duct. No additional sealing measures are necessary and the air tightness of the ducts remains unaffected.

The following are the standard profile drawing for reference, Thickness range is 1.2mm-1.8mm mostly. Still we can supply the Heavy duty steel Unistrut C Metal Slotted Strut Channel, thickness range 2.0-2.5mm, it can be used for solar frame system, etc.

Customized C channel profile can be supplied according to client requirements.
TAG: Duct Hanging Slotted C Channel machine, Steel Unistrut C Metal Slotted Strut Channel Machine


  • Last:Duct Flexible Connector Line
  • Next:Slotted Galvanized Steel C Channel Machine
