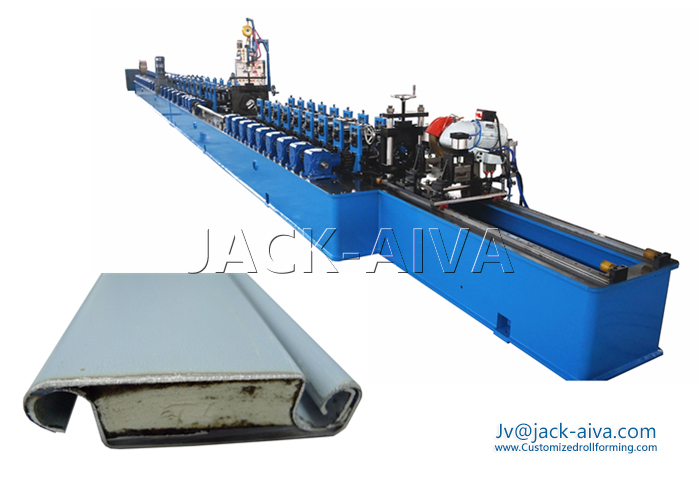

Insulated Roller Shutter slat roll forming Machine
■ Roll forming Machine for production of insulated rolling shutter door & window Insulated slats with Polyurethane foam-filled
This insulated roller shutter door is strong one for large structural openings, because of its thickness 1.2mm. It is solution for the heavy rolling shutter door slate. This slat is roll formed by two separated strips, the raw material can be colored steel or GI steel, or aluminum material. This texture makes the rolling shutter curtain less sensitive to surface damage, insulated rolling shutters are associated with security.
Our roll forming machine is for production colored steel shutter door & window slat with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes,. inline foaming, and cutting to length operations. Lines for high density or low density foamed profiles.
■ Rolling Shutter insulated Slat Machine components
The PU insulated Profile roll forming Machine is consisted of two sets de-coiler (manual) for loading raw material, roll forming machine, Tracing flying saw cutter, run-out table, electrical control system, PU foaming machine etc. The line is driven by chain and gears. The whole line is controlled by automatic.
■ Polyurethane Rolling Shutter Slats Roll Forming machine main parameters
|
Line structure
|
Portal-type frame style, HT200 steel
|
|
Forming Roller Stations:
|
36 Stations
|
|
Forming Roller shaft:
|
Φ48mm
|
|
Forming rollers
|
GCr15, Quenching, hardness HRC56-62º
|
|
Driving system:
|
By chain with gears
|
|
Main motor:
|
7.5kw,
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
(1.2 + 0.8) / (1.2 + 1 mm), GI steel or colored steel.
|
|
Cutting mode:
|
Tracing cutting system with round saw driven by servo motor or manual control is optional
|
|
Total Gross Weight:
|
About 8000kgs
|
|
Line size (Lx w x h)
|
22000 mm×1000 mm×1100 mm
|

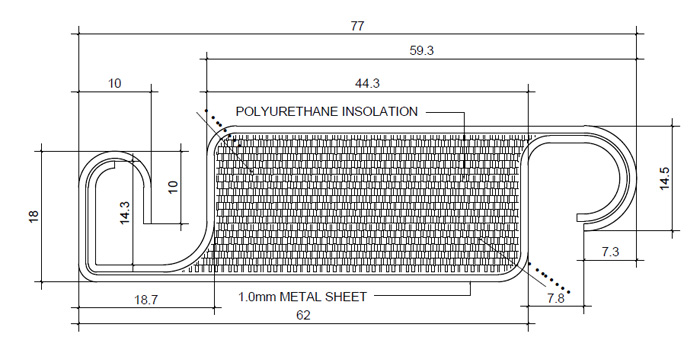

■ Insulated Roller shutter slat with PU foam-filled
Insulated Rolling shutters door now have been extremely popular in the whole world. The roll shutter business has become a multi-billion dollar industry. This style roller shutter door slat complies with the highest security in rolling fire doors, offshore rolling doors, storm doors, Rolling steel hurricane doors, insulated doors, Dock Doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms. TAG: Insulated Roller Shutter slat, roll forming Machine, Insulated slat roll forming machine, Rolling shutters production, Rolling Shutter Roll Forming Machine
Custom insulated olling shutter slat profiles are welcome! Pls contact with us for the further details.
TAG: Insulated Roller Shutter slat, roll forming Machine, Insulated slat roll forming machine, Rolling shutters production, Rolling Shutter Roll Forming Machine
