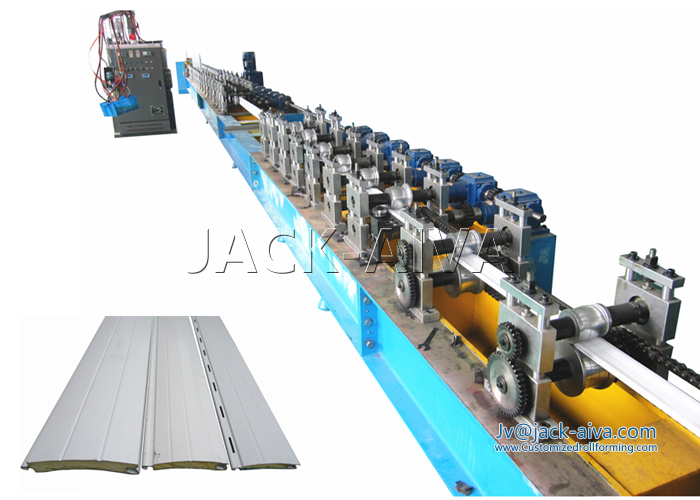

Polyurethane Foam-filled Rolling Shutter Slat Machine
■ Insulated rolling shutter door & window slats with Polyurethane foam-filled Production Line
Now Insulation Rolling shutters have become extremely popular in the world, not only in Europe. In many European countries, such as Germany, Italy, France and Spain, roll shutters are a standard feature on homes and businesses. The insulation roll shutter business has grown to become a multi-billion dollar industry. Our roll forming machine is for producing aluminum shutter door & window slat with foam-filled is developed based under this situation.
The Roll-forming line with the different tooling is suitable to produce the foamed rolling shutter profiles in different sizes, with inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles all can prepared according to client request.
The rolling shutters can be custom built for each application with many options for your exact needs.
■ Technology Specifications- Polyurethane Filled Rolling Shutter Slat Roll Forming Machine
The whole insulation slat production line is consisted of de-coiler, main roll-forming machine, straightening part, PU foam-filled device, cut-to-length tracing cutter, run-out table, etc. The roll forming line technology flow is as following.
■ Main Parameters -Polyurethane Rolling Shutter Slats Roll Forming machine
- Line structure Portal-type frame style, 45# steel
- Forming Roller Stations: 35 Stations
- Forming Roller shaft: Φ38mm
- Forming rollers GCr15, Quenching, hardness HRC56-62º
- Forming Speed: 0-7m/min
- Main motor: 7.5kw
- Material of Sheet: σs≤260Mpa
- Feeding material thickness: 0.3 to 0.5 mm;
- Cutting mode: Automatic cut-to-length control

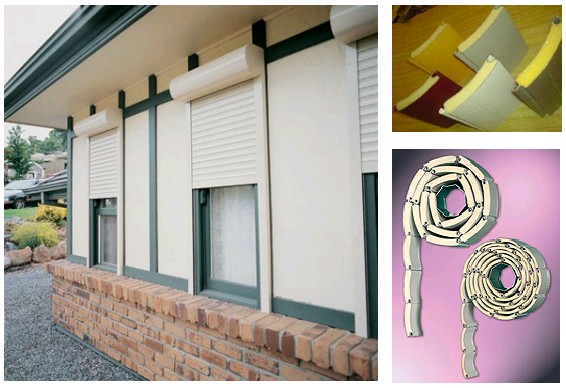

■ Insulated Roller shutter slat for door & window system
Insulated rolling shutter door and window covering that have been widely used in Europe for over 100 years. They offer energy savings, privacy and security, while enhancing the value and beauty of the home. Although insulated rolling shutters are associated with security and sun control, they can also decrease dust, noise and sun damage to furniture, draperies and carpets.
