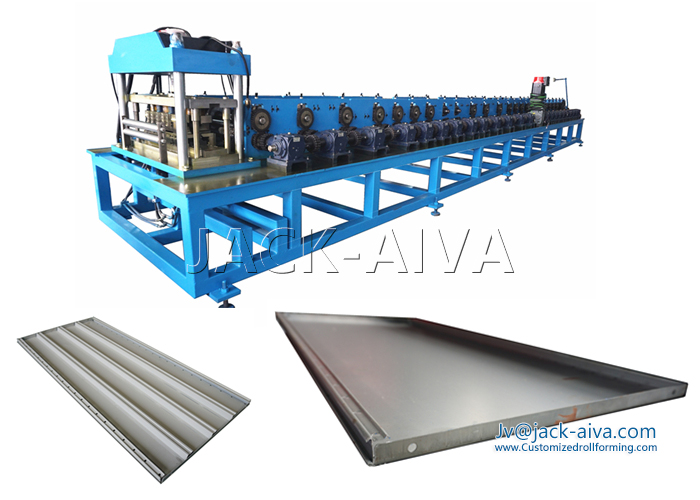

Storage Shelving Roll Forming Machine


 Roll Forming Machine for the Manufacture of Shelf Storage plate
The Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
With the production advantage of the shelving & storage racks roll forming equipments, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.

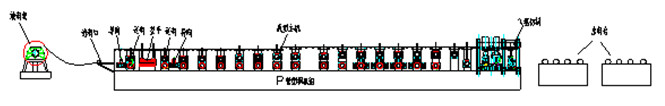

 Technology Processing Flow- Shelving Panel Roll Forming Machine
The whole line is consisted of de-coiler, Main roll forming machine, Cut to length, cutting equipment, hydraulic system, control system, etc
De-coiling—-- side punching ---Roll forming—cut to length--- bending + Cutting stacking production



 Main Parameters- Shelving Panel Roll Forming Machine
- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; (2-2.5) mm× L
- Punching machine with moulds 1 set, 63T
- Forming Roller Stations: 18 Stations
- Main shaft: 45﹟forge steel; diameter Ф650mm
- Punching model: Stop and Punching.
- working speed: 12m/min (include punching and cutting, length in ≥6m)
- Total power: 30kw
- Cutting mode: Automatic control, cut to length
- Hydraulic station power 4kw
- Power: 380V/3ph/50Hz (or according to the buyer's requirement)
- Dimension: 15.5*1.8*1.5mm

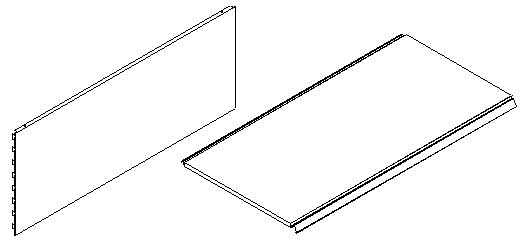

 Storage Shelf Plate
As the main component of the Shelf Storage system, The shelving is the important Profile for shelving in storage racking industry. The following are the typical of heavy shelving Plate for reference. ITs width can be adjusted, custom Shelf Storage Beam profile are welcome!




TAG: Shelving and Racking, Slotted shelf, Shelf Storage shelving Roll Forming Machine, The roll forming line production Shelf Storage Racks is also named as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine.
