Roof Panel Cassette style Roll Forming Machine

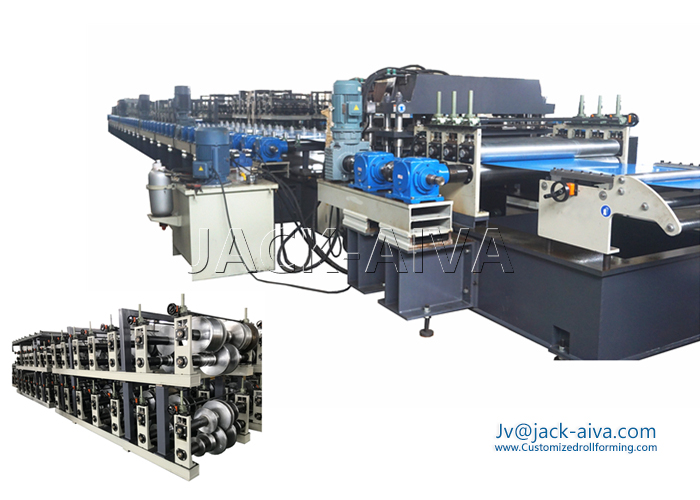

■ Cassette style Roll Forming Machine for production steel Roof panels
The automatic cassette style roofing machine can produce various steel roofing sheets, after changed the cassettes and cutting moulds. Normally it will take around 1-2 hours to change the roll forming cassettes, this is according to the machine sizes. With this design, client can reduce too much about machine working space requirement. If the quantity request by client is not large, this is the proper solution.
Our manufacturer is one of the leading supplier and manufacturer in china and have been supplying and making roll forming equipment for the metal building construction industry for a long time, We have full ability to supply the customized roll formers according to client request.
The whole line consists of un-coiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, and run out table.

■ Main Parameters - Automatic double layer roofing machine

Item

Content

Raw material

0.6-1.5mm, Yield strength of material: 235Mpa-345Mpa

Roll station:

Around 38 stations,
According to the roll formed profiles

Roller material

GCr15 surface under heat treatment and hard-chromed

Main power:

11kw +11kw

Forming Speed:

0-30 m/min

Driving system:

By gearing box

Control System :

Fully Automatic Control System with PLC, Easy operation: Key in the length and quantity on the control panel

Capacity Length:

up to 9999 mm (optional)

Total Gross Weight:

About 55000kgs

Line size (Lx w x h)

35000 mm×1500 mm×1500 mm


■ Roof panel profiles
One roll forming machine with different cassettes can produce different profile. We can manufacture as per customer provided drawings with specification or real objects of sectional materials, custom roll forming machine is welcome
More information about roof panel profiles, Pls contact with us!
