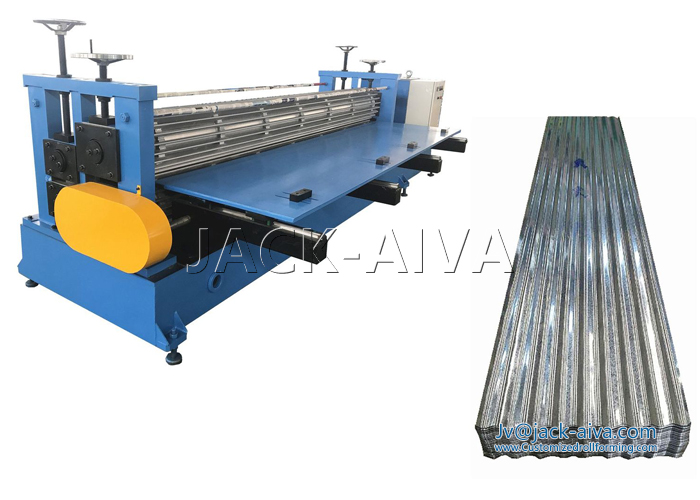

■ Rolling Machine for the manufacture of 0.18-0.3mm Thickness Corrugated Iron sheet roofing
This bending machine is special designed for production 0.18-0.3mm thickness corrugated Roof panel. With thickness roof panel lower cost, it is very popular in the world market. The advantage by the rolling machine is easy to obtain the good shape corrugation sheets, and easy operation. This sine wave roof profile are described in terms of pitch (the distance between two crests) and depth (the height from the top of a crest to the bottom of a trough). Almost all the corrugated iron sheet produced has the same pitch of 3 inches (76 mm). With the growth in the building industry there is currently such a huge demand for IBR and corrugated iron roof sheeting that it has culminated in shortages of ‘cromodek’ of up to a year. The raw materials are readily available there is simply not enough manufacturing capacity to meet demand.

■ Corrugated iron Sheets roofing rolling machine specification
The Corrugated Steel Bending Machine is specifically designed to roll corrugated sheets of galvanized steel thickness from 0.18 to 0.3mm. The bending rollers and pinching rolls are driven by independent hydraulic motors. Raising and lowering of the pinching roll is also accomplished by hydraulic motor/ worm and pinion gearboxes. The drop-end is manual, the hydraulic version is optional.

■ Corrugated iron Sheets roofing machine Main Parameters
Line speed: 12m-15m/min
Roller: Forming Roller 2pcs; flatting roller 2pcs
Corrugated Iron sheet Max length: 8000mm
Sheet thickness: 0.18-0.3mm (recommended)
Material of roller: high quality 45# forge steel, polished and coated with chrome
Main power: 11kw, adjusted by frequency inverter.
Control system: PLC Control (Panasonic brand); Code (Omron brand)
Size of main machine: 8000×1600×1200mm
Equipment weight: 7000kg

■ Corrugated iron Sheets Applications
This is the corrugated roof panel with sine wave profile, it is the popular the panel style in the world market, especially in Africa. With the advantage of lightweight and easily transport, Corrugated iron Sheets is widely used especially in rural and military buildings such as building shed and water tanks.b
Custom profiles are welcome! For information on metal roof sheets profiles by our roll-forming mills, please contact with us!
