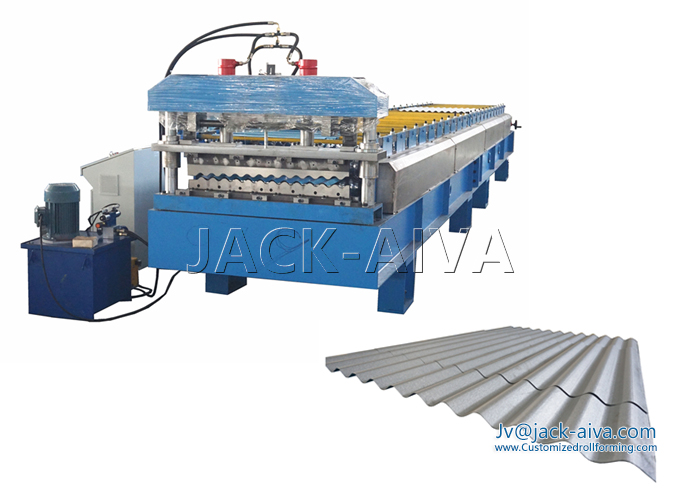

■ Roll Forming Machine for the manufacture of Corrugated Iron sheet roofing
The corrugations are described in terms of pitch (the distance between two crests) and depth (the height from the top of a crest to the bottom of a trough). Almost all the corrugated iron sheet produced has the same pitch of 3 inches (76 mm). With the growth in the building industry there is currently such a huge demand for IBR and corrugated iron roof sheeting that it has culminated in shortages of ‘cromodek’ of up to a year. The raw materials are readily available there is simply not enough manufacturing capacity to meet demand.

■ Corrugated iron Sheets roofing roll forming machine specification
Equipment components
This machine buildup by de-coiler, guiding device, main roll forming machine, hydraulic cutter, hydraulic system, control system, and product run-out table.

■ Technology Process
De-coiling - Coil sheet guiding and feeding - Roll forming - cut to length - stacking production

■ Corrugated iron Sheets roofing machine Main Parameters
Line speed: 12m-15m/min
Roll station: 16 stations
Material of roller: high quality 45# forge steel, polished and coated with chrome
Material of main shaft: 45# forge steel Ф76mm
Main power: 5.5kw
Hydraulic station power: 4kw
Hydraulic pressure: 10-12Mpa
Control system: PLC Control (Panasonic brand); Code (Omron brand)
Size of main machine: 8000×1600×1200mm
Equipment weight: 7000kg

■ Corrugated iron Sheets Applications

This is the corrugated roof panel with sine wave profile, it is the popular the panel style in the world market, especially in Africa. With the advantage of lightweight and easily transport, Corrugated iron Sheets is widely used especially in rural and military buildings such as building shed and water tanks.

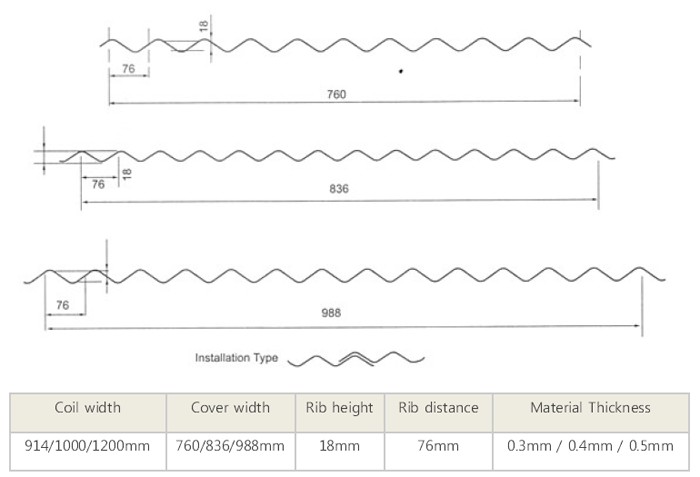

■ Corrugated iron Sheets Profile

Custom profiles are welcome! For information on metal roof sheets profiles by our roll-forming mills, please contact with us!
