Square Downspout Machine
■ Roll Forming machine for Production of Drainpipe System
This downspout roll forming machine is special for manufacturing various size square downspout, this pipe is also named as rainspout, rectangular downspout pipe. It is used for resident building or commercial building. Downspout is a pipe for conveying rain water from a roof or gutter to the ground or to a drain, also referred to as Leader pipe, Down-pipe or Drains-pout. The downspouts are more and more widely applied in rain water storage solution.
Totally there have two machines for this rain downpipe production solution, the roll forming machine for production straight rain pip, and another machine named Downspout Crimpers for production rain pipe elbow.

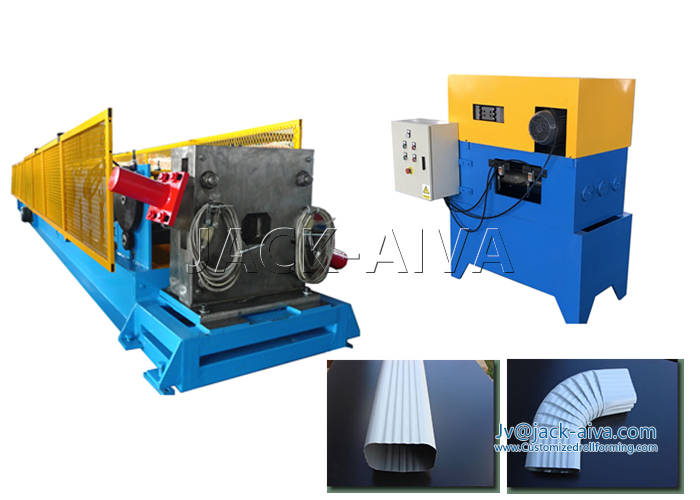

■ Rectangular Downspout Roll Forming Machine
Technology Specifications- Square downspout machine Roll Forming Machine
Rectangular Downspout Roll Forming Machine is consisted of de-coiler, material feeding device, main roll forming machine, moulds pressing part, mould cutting device, electrical control system. The square downspout line is designed according to profile drawing sent from client, thickness 0.4mm-0.6mm.
■ Roll Forming Machine Main parameters- Square Downspout Pipe
|
Item
|
Content
|
|
Forming Roller Stations:
|
18 Stations
|
|
Forming Roller size:
|
36 mm (for soft quality sheet)
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
3kw,
|
|
Hydraulic station power:
|
5.5kw
|
|
Capacity Width:
|
Less than 200mm
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.5 to 0.6 mm
|
|
Line structure:
|
Portal-type frame style, 45# steel
|
|
Control mode
|
PLC
|
|
Total Gross Weight:
|
About 4000kgs
|
|
Line size (Lx w x h)
|
7000 mm×1000 mm×1100 mm
|
|
Shipment:
|
In 1 x 40 Feet containers
|
■ Rectangular Downspout Elbow Machine
Elbows are fittings that attach to the downspout. One end of the gutter elbow is crimped so that it can fit inside another elbow or downspout. Elbows are used at the bottom of the downspout at ground level to direct drainage in a particular direction. Two elbows coming from the gutter are used to span the length of the eave so the downspout can be directly mounted to the wall of the structure.
Rectangular Downspout Elbow Profiles (Downspout Crimpers)
■ Rectangular downspout elbow pipe Machine
|
Item
|
Content
|
|
Control mode:
|
motor power
|
|
Main power:
|
2.2KW
|
|
Max bending angle:
|
900
|
|
Machine functions:
|
bending and locking function
|
|
Bending speed:
|
20-25m/ min
|
|
Line size (Lx w x h)
|
1300 mm×650 mm×1500 mm
|

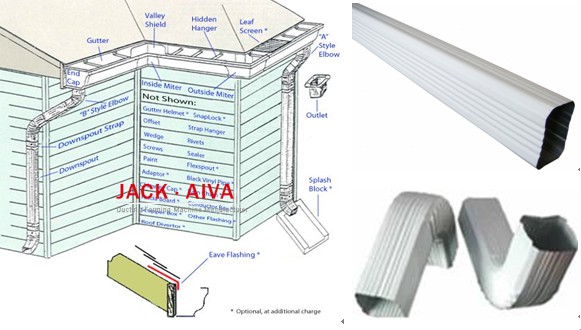

■ Roll Formed Profiles APPLICATIONS - Square (Rectangular) Downspout
Downspout disconnection (sometimes called roof leader disconnection) represents a cost-effective on-site alternative for reducing the volume and cost of storm water that requires public management. Runoff from residential rooftops is collected by eaves troughs, which are installed along the edge of the roofline. Water collected in the eaves trough is conveyed to ground level by one or more downspouts. Downspouts may then connect directly into the storm sewer system or in older neighbor hoods into a combined storm and sanitary sewer system. Disconnecting downspouts brings a number of economic and environmental benefits to the municipality and the homeowner
Custom sizes square downspout can be designed according to client’s requirements.
TAG: Rectangular downspout, Down pipe roll forming machine, Square Downspout Machine, Downpipe machines, Downspouts & Rain Gutters machines
