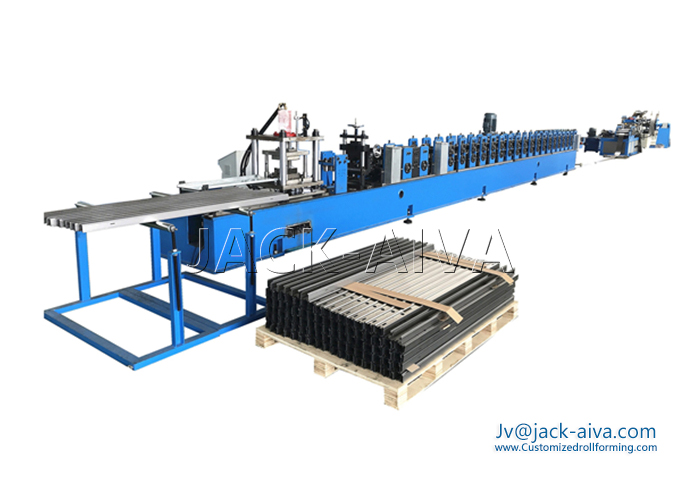

■ Roll Forming Machine for Production Lighting Fixture
Metal processing equipment for the lighting industry, Our Lighting fixture manufacturing roll forming machine and related production equipment produce fluorescent channels, troffer, reflectors, louvers, blades, and covers from gloss- painted steel and highly polished anodized aluminum. We design the roll forming machines that achieve critical cosmetic surfaces and production efficiency can be met your requirements. In-line precision punching and notching make the designs assembly-ready. See us for manufacturing equipment to produce everything from under-counter lighting to commercial and industrial florescent light fixture components.

■ technology specifications- Lighting Fixture Roll Forming production line

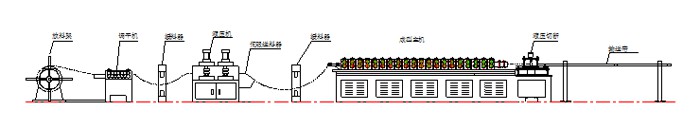

Lighting Fixture production line is an expert machine specialized in lighting fixture industry. The ceiling troffers profile roll forming machine mainly consists of conic, guide equipment, leveling system, notching, punching, roll forming system, roll forming cutting system, stacking equipment, hydraulic station, electric control cabinet.

■ Lighting Fixture production Rail Forming Technology

Main Parameters - light fixtures Roll forming machine

Line structure	Portal-type frame style: 45# steel
Forming Roller Stations:	20 Stations
Forming Roller shaft:	¢57mm, 40Cr, quenching, treating
Forming rollers	CR12MOV, quenching, hardness HRC58-60º
Forming Speed:	0-8m / min
Main motor:	11kw
Hydraulic station motor	15kw
Suitable raw material:	Q235A galvanized steel sheet
Driving mode:	Chain
Cutting mode:	automatic punching cutting style
Blade material:	CR12MOV, quenching and treating
Control mode	PLC

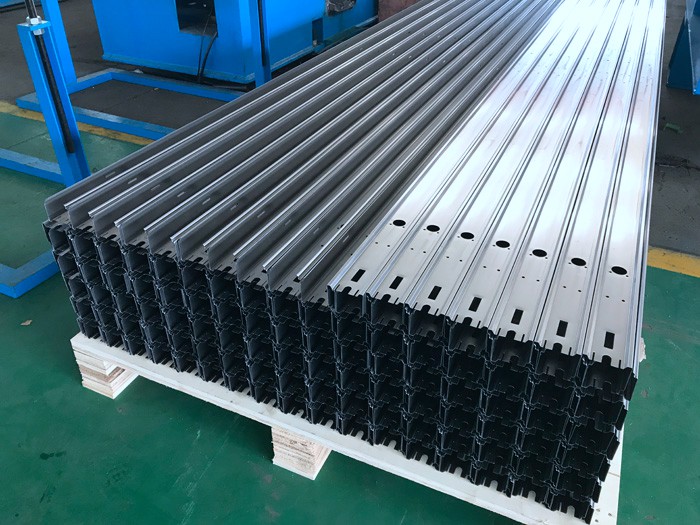

■ Lighting Fixtures profile
The main process of light fixtures is completed by the Roll forming machine, both ends process by separate hydraulic press machine. The following is the profile, the custom lighting fixtures profile is welcome!
