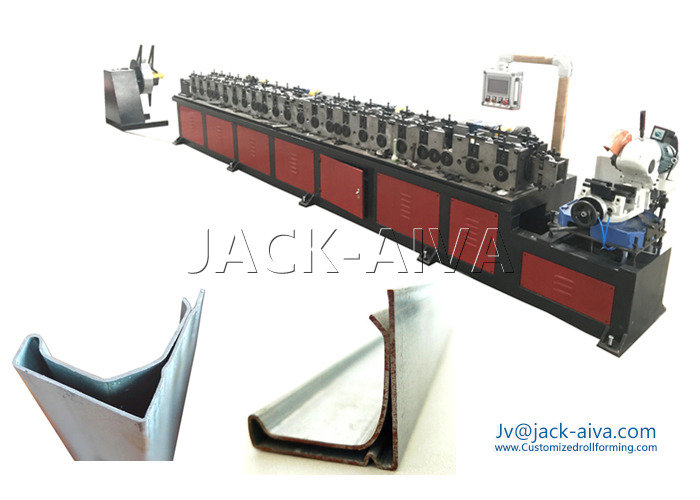

■ TDC Flange Roll Former machine for the Manufacture of Air-condition Rectangular Ducts Fittings

This is the TDC flange with Reinforce corrugation or beading. Our Duct TDC flange Roll-forming machine was specially designed to manufacture HVAC Duct flanges, the size can be 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, or other flange size for medium and large producers of square HVAC duct. Our Roll-forming machine VS5 consists of following parts. The certain width Sheet metal coil is loaded on vertical de-coiler, then enters through entrance, straightening part, then cut to length by round saw style cutter, The whole roll forming line can also be equipped with glue-water injection of sealing mastic directly during the forming process.
The TDC Flange is one of the two universal rectangular duct flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. The TDC Flange Roll Forming Machines is much suitable for producing a duct with a large sectional area. Many famous buildings in the world utilize this kind of structure in the ventilation system
Our manufacturer is the earliest supplier for this TDC flange roll forming machine, and now we still the leading manufacturer in china.
Now more TDC flanges style we have developed in the recent year, such as TDC-15 mm, TDC-50 and stainless steel TDC flange roll forming machine. Till now we are still the exclusive one in china to have the ability to supply the custom TDC flange roll formers according to clients’ requests.

■ Main Parameters - TDC Flange Roll Forming Machine For Rectangular duct flange

Raw material:		GI steel DC51+Z
Raw material width (mm):		According to the client’s sample or drawings
Raw Material Thickness (mm):		TDC flange 15mm, 20 mm profile: 0.6 - 0.8 mm TDC flange 30mm, 35 mm profile: 0.8 -1.0 mm TDC flange 40mm, 50mm profile: 1.0 - 1.2 mm (Or can be according to client’s requirement)
Forming roller station quantity:		About 16 Stations
Motor power	Main motor:	4kw, AC380v, 50HZ
	Cutting motor:	1.75kw, 2xAC220v, 50HZ
Weight (KG):		About 2000
Line Dimension (LWH)mm:		4850x700x1500
TDC flange profile:		TDC flange with beading

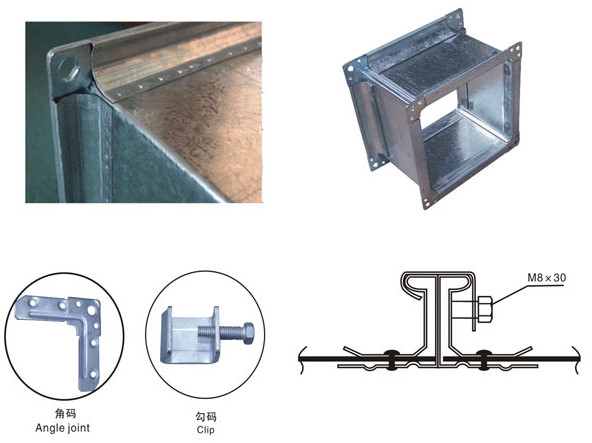

■ TDC flange Installation

■ HVAC TDC Duct flange with Reinforce Corrugation beading
This TDC flange with corrugation beading on bottom is more strong and durable for HVAC ducting system.
Now we have the ability to supply the TDC flange from 15mm to 50mm. And thickness can be from 0.5-1.2mm.
Others can be customized designed.
