■ Technology Specification - HVAC Fan Box Insulation Panel Machine

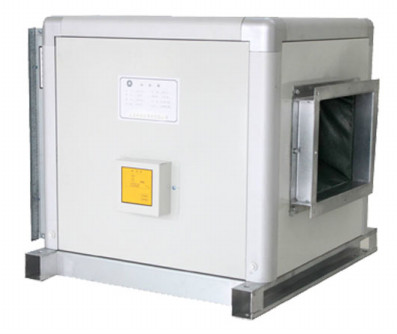

The Fan box is used to install the fan, the main function is to reduce noise, mainly it is adopted by HVAC duct system or fire fighting system.

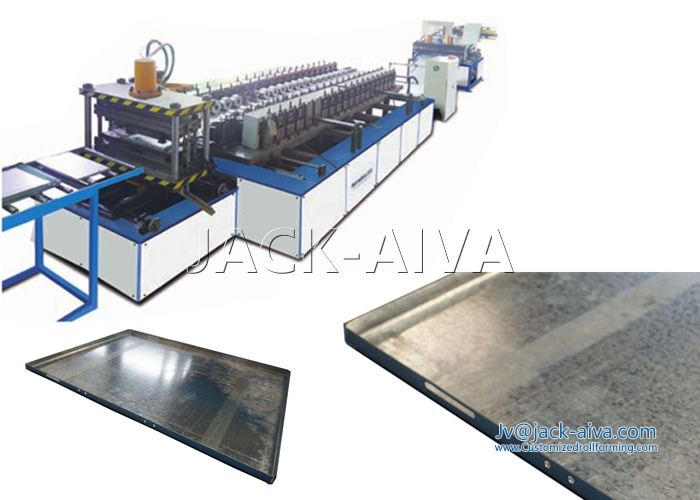

Our full automatic production line is designed for production fan box insulation panel special, the four side edge bending and holes punching can be all finished by the same line. With its lower cost, high efficient production, reduced product period greatly, saving time and labor, and reduced the scrap rate of product, which is the idea equipment for batch production of fan box production.
The production line is consisted of un-coiler (manual), leveler, punching and roll form machine, hydraulic punching & cutter, run out table, etc.
■ Main Parameters -HVAC Fan Box Insulation Panel Machine
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
8 Sets
|
|
Profile width
|
Adjusted by hand wheel or motor controlled
|
|
Forming Roller shaft:
|
Φ40mm
|
|
Forming rollers
|
SKII, Quenching, hardness HRC60-62º
|
|
Forming Speed:
|
0-8 meters / min
|
|
Main motor:
|
15kw
|
|
Capacity Width:
|
200mm
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.6 - 0.8mm
|
|
Control Cabinet
|
3xAC380v, 50HZ
|
■ Application
Customized fan box insulation panel can be designed according to client drawing or sample.
