■ Riveted-Type Fire Damper Fabrication Machines
Equipment for Production Fire Damper casing production machine with adjustable frame Width
The VCD Damper casing produced by the roll forming line is also named HVAC Damper Frame or fire damper. Our automatic Fire VCD damper production line is high efficiency machine, it is developed based on fully absorbing abroad competitors' advanced experience, it applied new crafts, new techniques and solved effectively many problems brought plate without any damages. the fire damper produced by it doesn't need weld and rust prevention treatment, and guarantees the zinc coating of zinc with any damages, which conforms to the national environmental protection requirements, its full line achieved standardized, intelligent and high efficiency production, reduced product period greatly, saving time and labor, and reduced the scrap rate of product, which is the idea equipment for batch production of fire VCD damper.

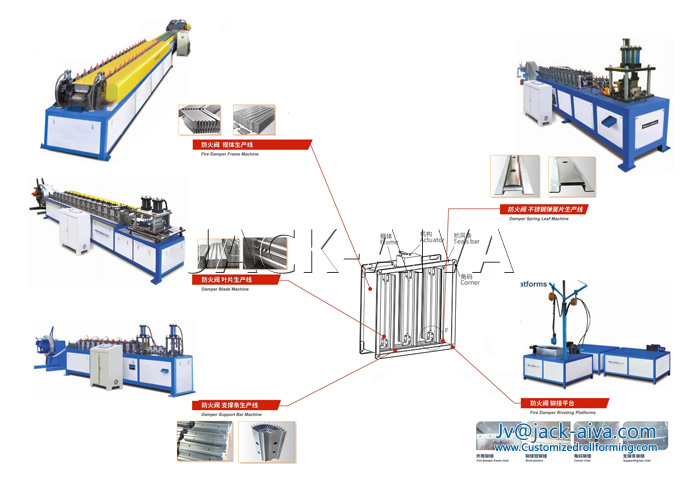

The whole solution for HVAC fire VCD damper production are including outer damper frame roll forming machine, positive pressure air supply outlet production line, blade roll forming machine, support roll forming machine, stainless steel spring profile roll forming machine, riveting platform, copper sheathing, square shaft making machine, etc.

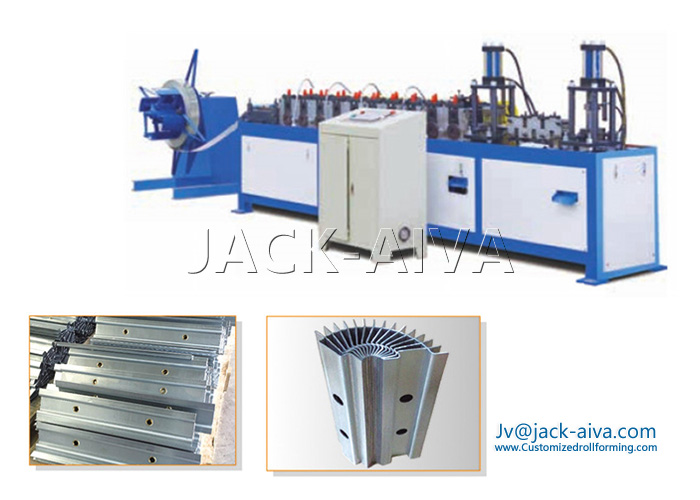

■ Riveted-Type Fire Damper Frame production Line
■ Technology specification - Fire Damper frame production line

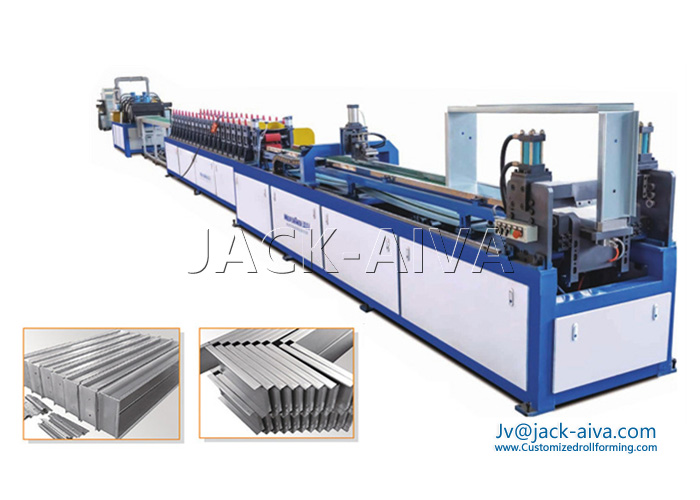

This is the line for production the Riveted-Type Fire Damper frame or damper casing, with Robot Clamping & Feeding.
The normal VCD frame profiles production Line can be designed according to 0.5-2.5mm thickness GI Steel. The VCD damper frame machine is consisted of the following Basic components.
- Power UNCOILER 1set
- Leveler 1set
- Notching (big and small) 2sets
- Punching installation holes moulds 1set
- Punching moulds for TEMP sensor 1set
- Punching moulds for steel angle flange installation holes (optional)
- Hydraulic cutter 1set
- Strip feeding table 1set
- Roll former - adjustable width 1set
- Hydraulic bender 1set
- Hydraulic system 2 sets
- CNC control system including double servo driving 1set
■ Main Parameters - damper casing production line
|
Capacity (mm):
|
1.5-2.0mm
|
|
Raw Material
|
GI Steel, black steel
|
|
Coil width
|
278-398mm
|
|
Coil weight (mm)
|
Less than 3000kg
|
|
Line speed
|
0-10m/min
|
|
Length tolerance
|
+/-0.5mm
|
|
Diagonal tolerance
|
+/-1mm
|
|
Dimension (mm)
|
13000*1000*1200
|
|
Total power (KW)
|
28KW
|
|
Dimension (mm)
|
16500*1100*1550mm (L*W*H)
|
|
Certificate
|
Suitable for CCCF Standard
|

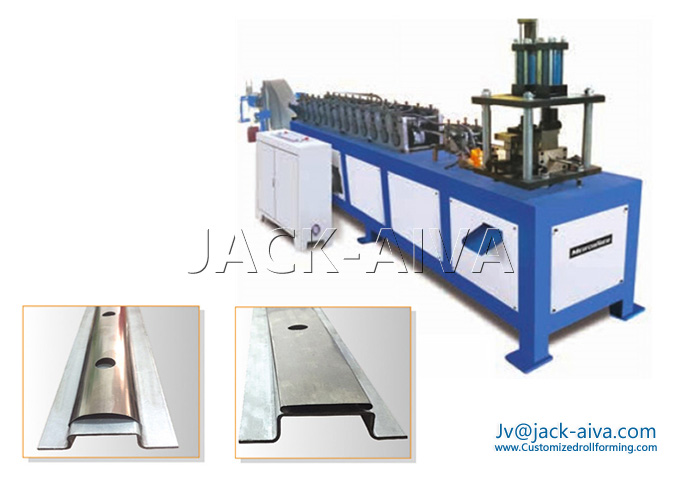

■ HVAC Damper V-Blade Roll Forming Machine
■ HCAC Fire Damper V-Blade Roll Forming line for production Fire Damper Splitters, Damper Baffles

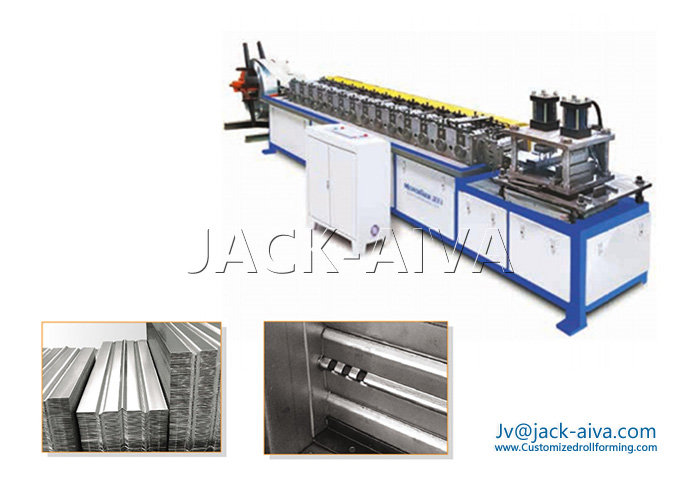

The forming machine is a special designed for the production of Fire Damper V-Blade / fire damper blade, suitable for use in the construction site or fire damper production plant. The standard opening size is: 198mm, and the standard molding size is 185mm. The fire damper V-blade roll forming machine is designed according to 1.5-2.0mm thickness GI Steel.
The Fire Damper Blade line Basic components are as following,
-. UNCOILER 5Tons 1set
- Damper Blade Main roll forming machine 1set
- Hydraulic cutter 1set
- Auto Tearing device 1set
- Run out table 1set
- CNC control system 1set
- Hydraulic system 2 sets
■ Main parameters - Fire Damper V-Blade Forming Machine
|
Capacity (mm):
|
1.5-2.0mm
|
|
Raw Material
|
GI Steel, black steel
|
|
Coil width
|
163-203mm
|
|
Coil weight (mm)
|
Less than 2000kg
|
|
Line speed
|
0-10m/min
|
|
Length tolerance
|
+/-0.5mm
|
|
Diagonal tolerance
|
+/-1mm
|
|
Dimension (mm)
|
7000*700*1200
|
|
Total power (KW)
|
12KW
|
Customized damper can be designed according to client drawing or sample.
■ Damper Support Slat Machine
■ Brief Introduction - Damper Support Slat Machine
The roll forming machine is a special designed for the production of fire damper support strips. Fire Damper Frame Support frame produced by the roll forming machine also is named Blade support frame. The center distance of the plate hole can be freely adjusted, and the hole diameter is φ16mm;
The damper Support Slat Machine is including UNCOILER 3Tons, Damper Support strip Main roll forming machine, Hydraulic cutter, Run out table, CNC control system and Hydraulic system
■ Main Parameters- V-Blade Shaft Omega Support Slat Machine
|
Capacity (mm):
|
1.5mm
|
|
Raw Material
|
GI Steel, black steel
|
|
Coil width
|
95mm (according to blade width)
|
|
Coil weight (mm)
|
Less than 2000kg
|
|
Forming rollers
|
GCR15
|
|
Roll forming stations
|
8 sets
|
|
Driving servo motor
|
5.5KW
|
|
Line speed
|
0-15m/min
|
|
Length tolerance
|
+/-0.5mm
|
|
Dimension (mm)
|
7000*900*1200
|
|
Total power (KW)
|
9KW
|
|
Weight (kg)
|
1.5T
|
Customized damper can be designed according to client drawing or sample.
■ HVAC Damper Side Seals Fabrication Machine
■ HVAC Damper Side Seals Fabrication Machine, Stainless steel C profile
This roll forming machine is a special for the production of fire damper spring leaf, stainless steel sealing strip,
The fire damper stainless steel C profile roll forming machine is designed according to 0.2mm. The Damper Side Seals profile production line is consisted of uncoiler (manual), leveler roll form machine, hydraulic punching and cutter, hydraulic system, electrical control system, etc.
■ Main parameters of HVAC Damper Side Seals Fabrication Machine
|
Raw Material
|
Stainless steel SUS304
|
|
Thickness (mm)
|
0.2mm
|
|
Coil width
|
78mm
|
|
Finished profile width
|
55mm
|
|
Forming stations
|
9 sets
|
|
Forming roller material
|
Cr12MoV
|
|
Line speed
|
0-10m/min
|
|
Length tolerance
|
+/-0.5mm
|
|
Diagonal tolerance
|
+/-1mm
|
|
Dimension (mm)
|
7000*700*1200
|
|
Total power (KW)
|
7KW
|
■ HVAC Damper Side Seals, Stainless steel C profile
The Fire Damper Spring leaf by the Roll Forming Machine is the stainless steel sealing strip. The normal Fire Damper spring leaf size is 0.2mm thickness, and the standard width is 55mm.
Customized damper can be designed according to client drawing or sample.
■ HVAC Fire Damper Assembly Machine
The Fire Damper Assembly Machine is consisted of Fire Damper Riveting Platform, Cooper Sheathing and Square Shaft Assembly Machine.

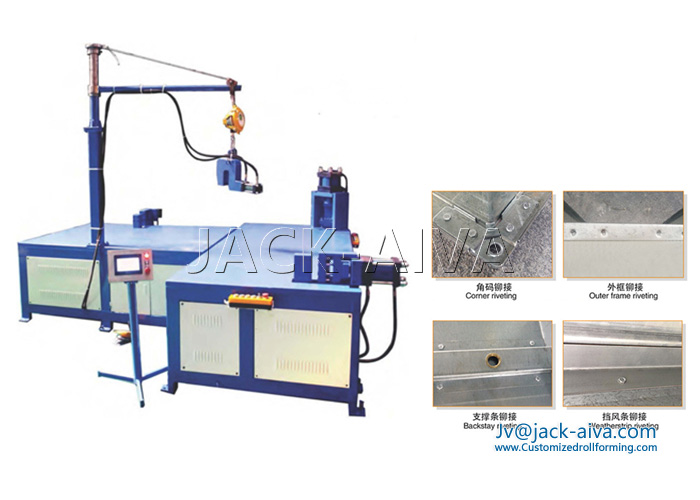

■ Fire Damper Riveting Platform
The fire hydrant riveting platform is a valve fire assembly production line specially developed for fire damper assembly. It adopts assembly line operation, no welding, and the valve body does not need to be painted. The fire damper produced has beautiful appearance and high production efficiency. It is a special for fire valve assembly. production line,
Our Fire Damper Riveting Platform consists of the following parts assembly, the outer frame rivting (4 Rivet), damper frame corner rivting (4 rivets), Support bar riveting (double rivets), windshield riveting (single rivet).
■ Main Components- Fire Damper Riveting Platform
- Damper Frame Rivet Moulds 1 set
- Damper Frame Corner Rivet Moulds 1 set
- Hydraulic rivet moulds for support bar 1 set
- Hydraulic rivet moulds for windshield riveting 1 set
- Hydraulic system 4 set
■ Main Parameters- Fire Damper Riveting Platform
- Raw material: GI steel
- Thickness: GI Steel 1.5-2.0mm
- Control system: CNC control
- Main power: 380V*50HZ*3Phase
- Hydraulic pressure: 16MPa
-Total Power: 11KW
- Weight: 1.5T
■ Cooper Sheathing, Square Shaft Assembly Machine
This hydraulic press machine with moulds is a special designed to process the Cooper Sheathing, Square Shaft Assembly.
The advantage is the high efficient compared with traditional production.
■ Cooper Sheathing, Square Shaft Assembly Machine Components
- Cooper sheathing compacting molding 1 set
- Square shaft compacting molding 1 set
- Share by hydraulic pressure and controlling system and riveting patform 1 set

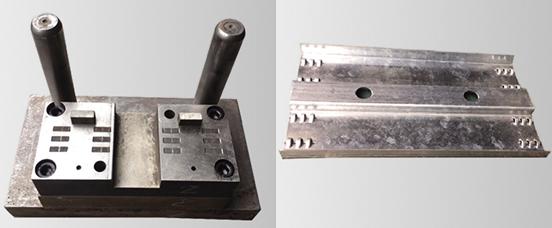

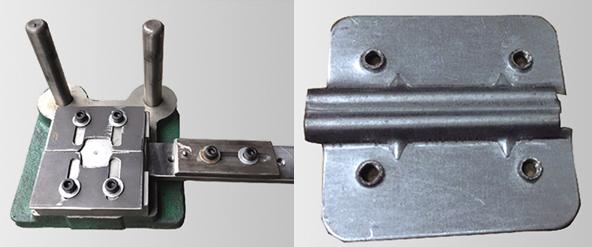

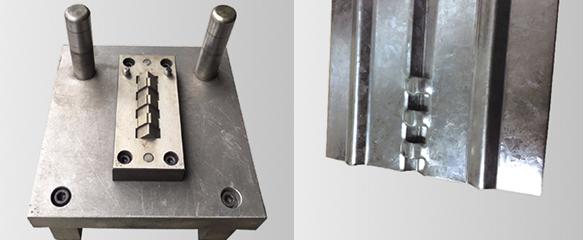

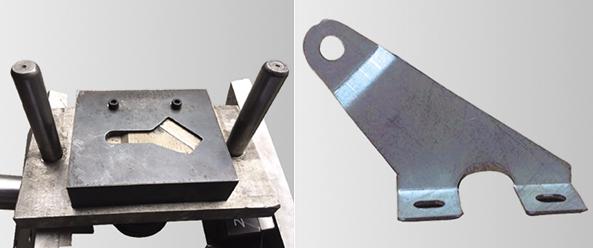

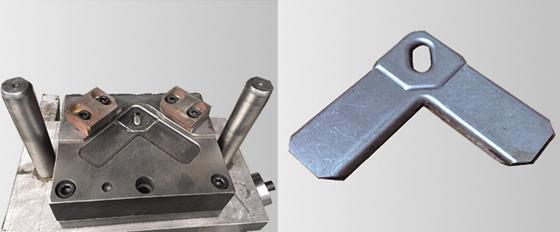

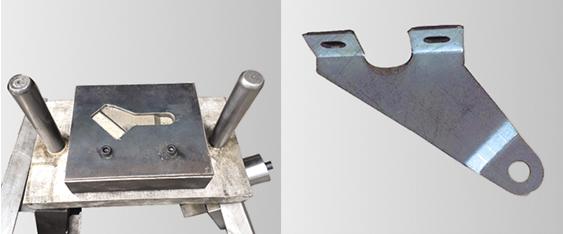

■ Fire Damper Mating Moulds
· Fire Damper Blade Tearing Moulds
· Connecting Rod Punching Moulds
· Positive Leaf fitting moulds
· Fire Damper Baffle Tearing Moulds
· Corner Punching moulds
· Negative leaflets fitting moulds

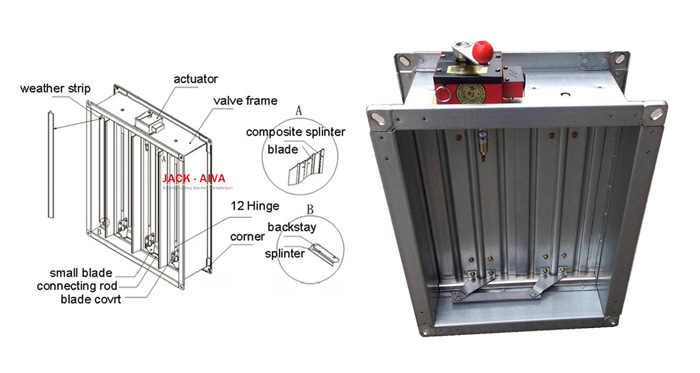

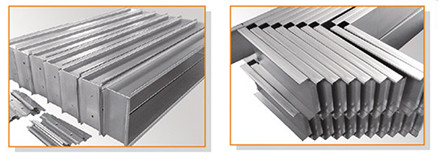

■ Fire VCD Damper casing Brief introduction
Our VCD damper frame is the main part of the HVAC air flow control valve, the valve is an industrial plant civil construction of ventilation, air conditioning and air purification project indispensable central air conditioning end parts, generally used in air conditioning, ventilation system ducts, used to adjust the air flow manifold can also be used for new wind and back mix adjustment of the wind.
With the advantage of our full experience in this roll forming industry, we develop the roll forming line for production this VCD damper frame online, the whole process can be completed at one time.
The following profile drawing is for type VCD damper frame. Custom style decorative sheet profiles are welcome!
Customized damper can be designed according to client drawing or sample.
TAG: Fire Damper casing Production Line, VCD Damper Frame, HVAC Damper Frame
Last：Air Duct Volume Control Damper Machine
Next：Fire Damper VCD Blade Roll Forming Machine
