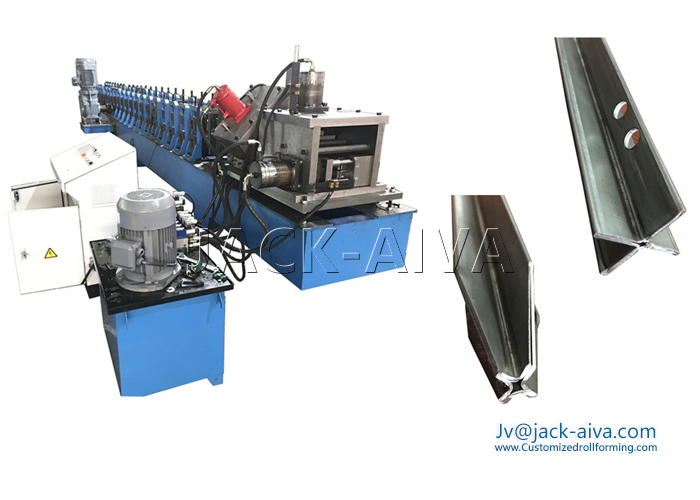

Steel Fence Cross Post Roll Forming Machine
■ Roll Forming Machine for production Cross style Steel Barrier fence Post
The fence post range by our roll forming machine includes road safety barriers, motorcycle barriers, end terminals, car park and warehouse barriers, factory barriers, etc.
The barrier post profile as a main part of the fence is a product made by rolling cold-galvanized steel strip. This steel pillar is mainly used in barbed wire fences. The horizontal cross-sectional shape of the mounting pillar can be divided into I-shaped pillars, C-shaped pillars, L-shaped post, mouth-shaped pillars, and Y-shaped post. there already have mounting holes on the posts.
The surface of the pillar can be treated with galvanizing or plastic spraying. The characteristics of this fence are beautiful, durable, easy to install and easy to disassemble. It can be made into a permanent fence, and it can also be used as a temporary isolation fence. This is an ideal metal fence, which has been widely used in various industries.
■ Technology Specifications- Steel Barrier fence Post Roll forming machine
With our more than 20 years in this roll forming machinery industry, we have full experience to supply the customized barrier fence roll formers according client request, H shaped post, L shaped post, Y shaped post, pipe post, etc.
This roll forming line mainly consists of conic, guide equipment, leveling system, edge cutting, punching, roll forming system, roll forming cutting system, stacking equipment, stacking move equipment, hydraulic station, electric control cabinet.
The technology is as following,
De-coiler - Coil strip leveling- Punching-I for horizontal hole)-Punching-II (for vertical hole)-Roll forming- straightening device---Cut to length- Product packaging (manual)
■ Main Parameters- Cross shaped Steel Barrier fence Post guardrail Roll Forming Machine
- Line structure Portal-type frame style: 45# steel
- Forming Roller Stations: 24 Stations
- Forming Roller shaft: ¢65mm, 40Cr, quenching, treating
- Forming rollers GCr15, quenching, hardness HRC56-62º
- Forming Speed: 0-12 meters / min (suggestion speed: 7-8m/min)
- Main motor: 11kw
- Hydraulic station motor 4kw
- feed material thickness: 1.5 mm× L
- Suitable raw material: Q235A galvanized steel sheet
- Driving mode: chain or gearing box
- Cutting mode: automatic punching cutting style
- Blade material: Cr12, quenching and treating
- Control mode PLC
■ Steel fence Post Applications
The advantage of the steel wire fence with this cross post is Extraordinary and fashionable design, convenient installation. The fence net are jointed with the post without any clamps, and it is easy and convenient. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.
With these advantages, this style wire net fence are widely adopted by following fields,
Road and transit (highway, railway, road, city transit)
Science & Industry Zone (factory, industry zone, sightseeing zone, new pattern farm)
Private grounds (courtyard, villadom )
Public grounds (park, zoo, train or bus station, lawn)
Commercial grounds (corporation, hotel, supermarket)

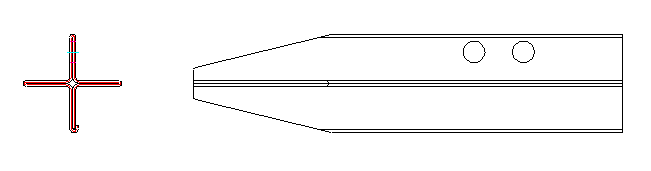

The following the cross shaped post profile is for reference. The custom fence post profile is welcome!
