■ Brief introduction -Highway Barriers, Roadside barriers, Safety barriers
Three wave Expressway Guardrail are the most common crash barrier used on highways due to their high effectiveness and inexpensive production costs.
We offer Innovation and Design of complete roll forming machine for the Highway industry, including installation and world class service. We are a global supplier of Roll forming Systems with a Local presence. We specialize in roll former machines engineered to produce expressway 2 – space W beam guardrails, Guardrail sigma posts, corrugated steel beam, Sign posts, highway Barriers, steel guardrail cross beam, Guardrail End, etc. .

■ Technology Specifications- Highway Barriers Roll Forming Line, Roadside barriers

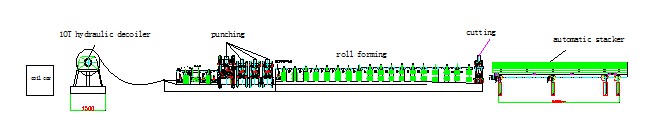

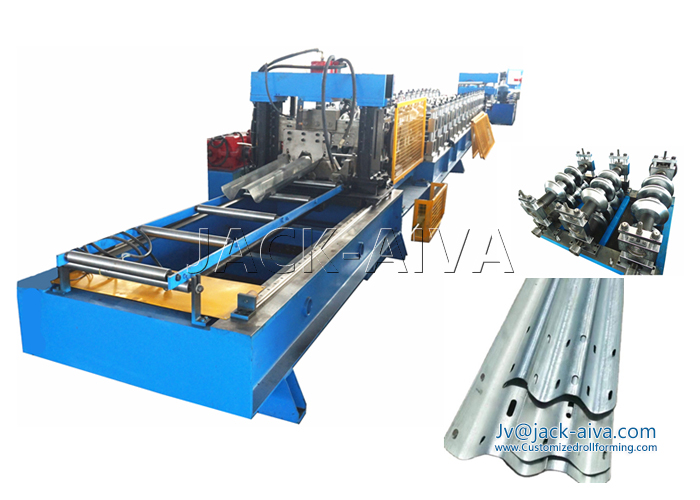

This is the Highway Barriers Roll Forming Line with Tracing cutter. The whole line for production Safety barrier is consisted of uncoiler, leveler, Holes punching, main roll former, Servo control tracing cuter, run out table, hydraulic station, electric control box, etc.

■ Main Parameters- Highway Barriers Roll Forming Line, Tracing cutter, Roadside barriers, Safety barriers
- feed material thickness: (2-3.5) mm× L
- Suitable raw material: Q235A galvanized steel sheet
- Line structure Portal-type frame style: 45# steel
- Forming Roller Stations: 20 Stations
- Forming Roller shaft: ¢100mm, 40Cr, quenching, treating
- Forming rollers GCr15, quenching, hardness HRC58-60º
- Forming Speed: 12 meters / min (suggestion speed: 7-8m/min)
- Main motor: 55kw
- Hydraulic station motor 15kw
- Driving mode: Gearing box & cardan shaft
- Cutting mode: automatic punching cutting style
- Blade material: Cr12, quenching and treating
- Control mode PLC

■ Safety barrier Profile

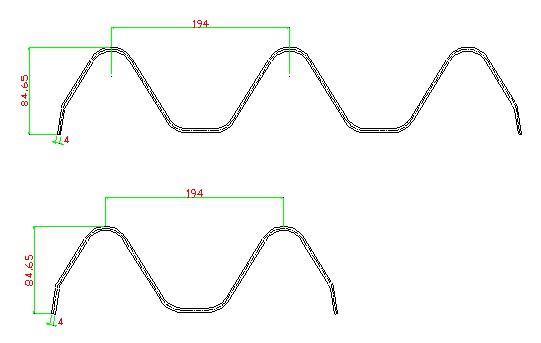

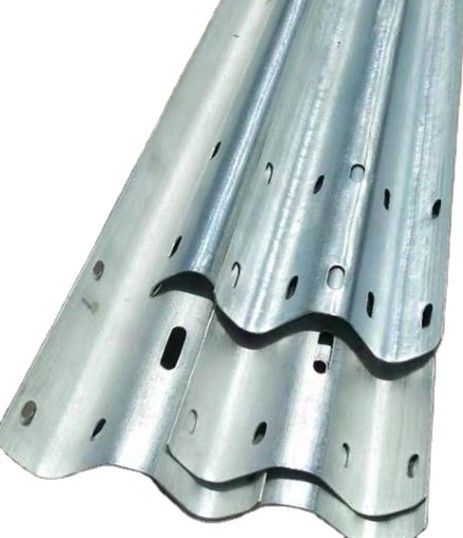

Roll formed guardrail profiles produced by roll form machine are included W beam guardrail and three beam steel guardrail. The following profiles showed as following is for the two waves and three waves and post profile drawing and popular in the world market, the custom express high way guardrail profile is welcome!
