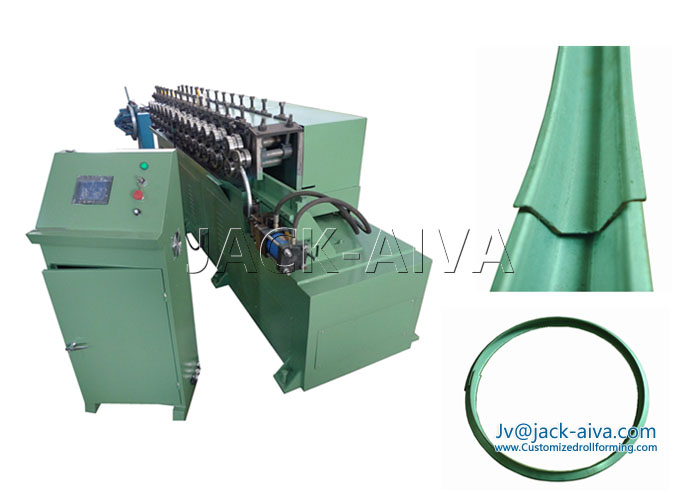

Barrel Hoop Roll Forming Machine
■ Roll forming machine for production Custom steel circle hoop profile of locking ring
This barrel hoop line can auto roll forming, bending and cutting rings at the same time. This hoop forming machine is together with butt welding machine constitute steel rim forming and butt welding production line. It’s suitable for manufacturing barrel hoops of metal drum, plastic drum, fiber drum, chemical barrel, cleaner barrel etc.
Our barrel hoop line is special designed for heavy steel barrel hoop, The whole line frame adopts high quality steel profile, and the important machine parts are all purchased from world famous companies to guarantee the good quality and performance.
With CNC automatic measurement control and special design, the higher precision perimeter diameter can be obtained by this Circle Machine and Winding Machine, and cutting without profile distortion
■ Steel hoop Roll Forming Machine Components
The whole barrel hoop roll forming line is consist of De-coiler, main roll forming machine, straightening part, bending device, cut-to length part, run-out table, PLC electrical control system and hydraulic station, etc.
■ Roll Forming Machine main parameters
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
15 Stations
|
|
Forming Roller shaft:
|
Φ42mm
|
|
Forming rollers
|
Cr12Mov, Quenching, hardness HR58-60º,
|
|
Forming Speed:
|
6 -7 meters / min
|
|
Main motor:
|
5.5kw,
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
1.8mm-1.5mm (can be designed according to the requirements)
|
|
Cutter Device
|
Hydraulic cutter
|
|
Control system
|
PLC automatic system
|

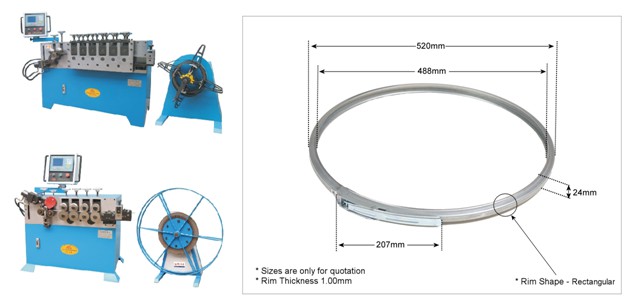

With Our manufacturer more than 25 years experience, we have full ability to design and supply different kinds of steel circle barrel hoops according to client’s request. The following sample for your reference.
Custom steel circle hoop profile of locking ring is welcome!
TAG: Circle Machine and Winding Machine Series, barrel hoop Roll forming machine, locking ring, clamping ring, automatic barrel hoop making machine, Drum closing ring, steel drum making machine, machine for making the lock rings for 220 liters open lid steel drums.
