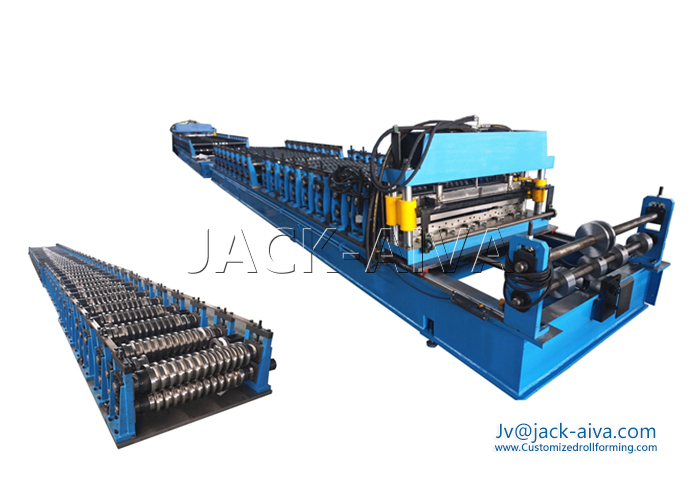

Automotive Carriage Corrugated Sheet Machine
■ Brief Introduction - Roll forming machine for Automotive Carriage Corrugated Sheets
The field of automotive cold-formed molding equipment are mainly including as following, auto bumper or frame part profile equipment, windows guides, door trim, A-pillars, B-pillars, other automotive parts, rail car doors and windows, car beam shaping devices, and related auxiliary equipment auxiliary group and the three-dimensional pulled equipment, special cutting equipment.
The Automotive Carriage Corrugated Sheets roll forming machine can be customized prepared according to client drawing, various profile width can be possible by the same line and no need to change any other parts. also the cassette style roll forming technology can be adopted, the whole line is consisted of de-coiler, roll forming machine, straightening device cutting device, electrical system.
Un-coiler→ guiding → leveling → Roll forming → tracing cutter → run out table
■ Main Parameters- Roll forming machine for Automotive Carriage Corrugated Sheets
|
Item
|
Content
|
|
Profile
|
Automotive Carriage Corrugated Sheets
|
|
Material:
|
Galvanized steel sheet
|
|
Thickness of raw material:
|
1.0 -1.5mm
|
|
Station quantity
|
15 sets
|
|
Forming roller
|
GCR15, hardness HRC58-60 after treatment
|
|
Main shaft
|
Ф95mm
|
|
Main motor power:
|
30KW + 15kw*2
|
|
Hydraulic motor power:
|
4kW
|
|
Cutter
|
Servo motor driving model
|
|
Working speed:
|
1-15m/min
|
|
Capacity Length:
|
up to 9999 mm (optional)
|
|
Control system:
|
PLC control, The designing of metal deck forming machine is aided and optimized by computer.
|
|
Voltage:
|
380V 3 phase 50Hz or as per the customers' requirements
|
|
Total weight:
|
about 15MT
|
|
Main machine size
(Lx w x h)
|
85000 mm×1500 mm×1100 mm
|

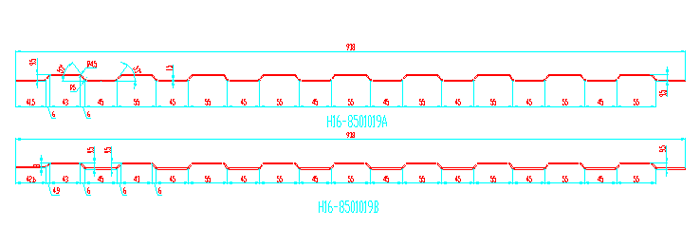

■ Automotive Carriage Corrugated Sheets
We are one of the most professional suppliers in this automotive components roll forming machinery industry in china.
We had ever designed and supplied related automotive roll forming machines for the Toyota Corp., Honda Co., Chery and other relative spare parts suppliers and other related Chinese agriculture automobile companies, etc.
Custom roll formed profiles in this automobile industry are welcome!
TAG: Automotive Carriage Corrugated Sheets, Automobile Roll Forming machine, Automotive Roll Forming Line, Roll forming machine for Truck carriage Side panel or guard sheet
