Automotive Track Roll Forming Machine

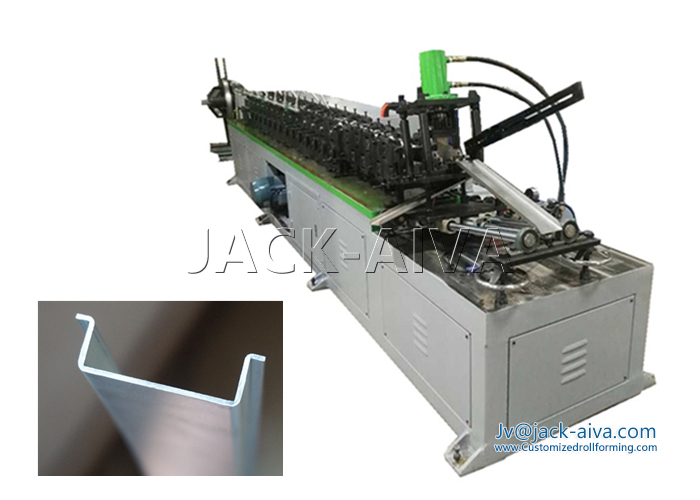

■ Automotive Roll forming Machine for Production windows and door rail or Track
The field of automotive cold-formed molding equipment are mainly including as following, auto window and door profile equipment, windows guides, door trim, A-pillars, B-pillars, other automotive parts, rail car doors and windows, car beam shaping devices, and related auxiliary equipment auxiliary group and the three-dimensional pulled equipment, special cutting equipment.
■ Automotive Channel Roll forming line for production windows and door rail
1. Voltage: 3xAC380V; motor power (with high-speed fan) 15KW * 2; Converter 15KW * 2; Motor rpm 1400r/min.
2. Center height of around 1200mm, can be mounted on 36 set forming rollers; MAX speed 20r/min; Line speed: 0-16 m / min.
3. Line Dimension: 13500 * 1000 * 1500 (According to design date), and with Lubrication cooling system.
4. Axis effective width: 300mm; shaft diameter φ40mm; Maximum torque 139.6kg-m; adjacent shaft distance: 300mm; output torque 69.8kg-m.
5. Up and down roller axis parallel degree 0.08mm (any direction). Wheel installed base straightness 0.04mm, wheel axle hop is 0.04mm, wheel frame Table Flatness 0.10mm, roller shelves adjustable 95-170mm wheel under the frame Fast change mode device.
6. Forming Range: feeding material width 0-280mm, thickness 0-2mm.
7. Forming cross-section size precision ± 0.2mm.
Herein the related parameters are the standard, the custom lines are according to clients’ request.

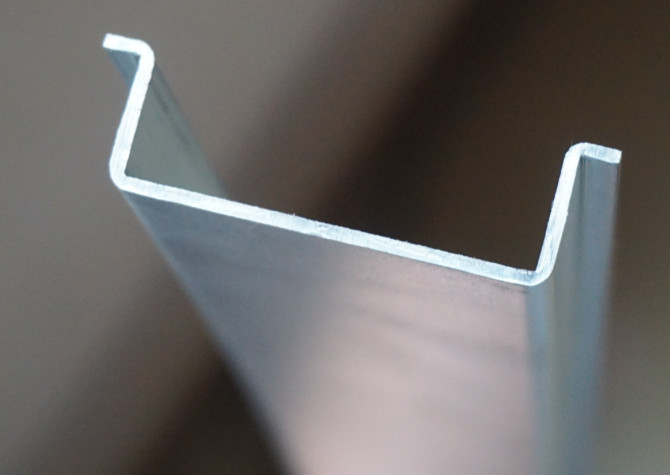

■ Automotive Roll Forming Profiles
We offer Innovation and Design of complete roll forming & bending line for the automotive industry, including installation and world class service. Such as from & rear door frame, roof ditch, door glass run rail, Bumpers, roof rail, roof molding, side beam, side Impact Beams, Chassis Components, Trim, Pillars, Structural Cross Members, etc. We are a global supplier of Roll forming Systems with a Local presence.
